Hello! First forum post, dunno if I'm doing it right, but I think this is where I post.

I was wondering if I could have pd detect audio levels of an audio and use that for intensity of an object motion on GEM. I want to do a visualizer for music but I didn't use pd but I still would like GEM's unique imagery. Please let me know if this is possible.

(xtra info: I'm going to export several isolated sections [drums, synths, bass] all into audio files and play them back on pd all at once, with each audio file having a visual shape attached to it with an assigned motion based on how loud the audio is.)

@fossicks Welcome to the forum...!
https://curiousart.org/digital_proj/pd_eBook.pdf
Around page 264...... especially [env~]
A great resource for working with GEM and Pd.

And you might like this...... waveform-vanilla.zip
David.

@whale-av lolol apologies, getting use to this forum. fanks for the move, will note for next time. :]

@fussicks said:

I was wondering if I could have pd detect audio levels of an audio...

See the [slop~] help patch for an amplitude (envelope) follower -- called "peak meter" in the help patch.

hjh

vu meter maybe works

@willblackhurst said:

vu meter maybe works

Works for which part?

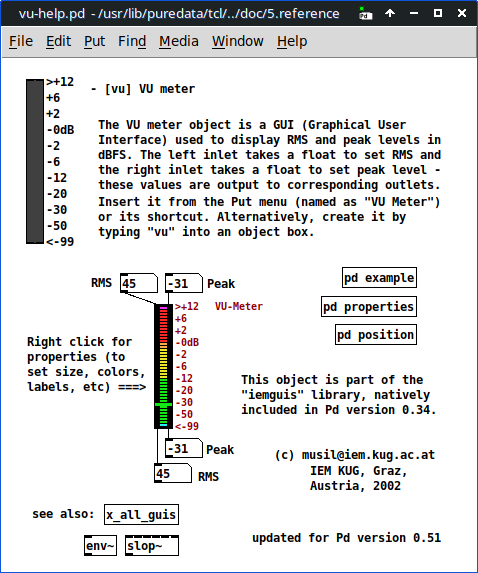

The screenshot you posted shows that the vu meter object doesn't do the volume measurement itself. It only displays the dB level that you've calculated on your own. So I don't think that object is relevant to OP's question (which is, how to calculate the volume level, and for which there have already been a couple of suggestions in the thread).

hjh
